Echo Bubble Guard
India's Most Advanced PP Honeycomb Board — Available in Simplex, Duplex, 5X & ESD Variants
India's Most Advanced PP Honeycomb Board — Available in Simplex, Duplex, 5X & ESD Variants
Product Variants

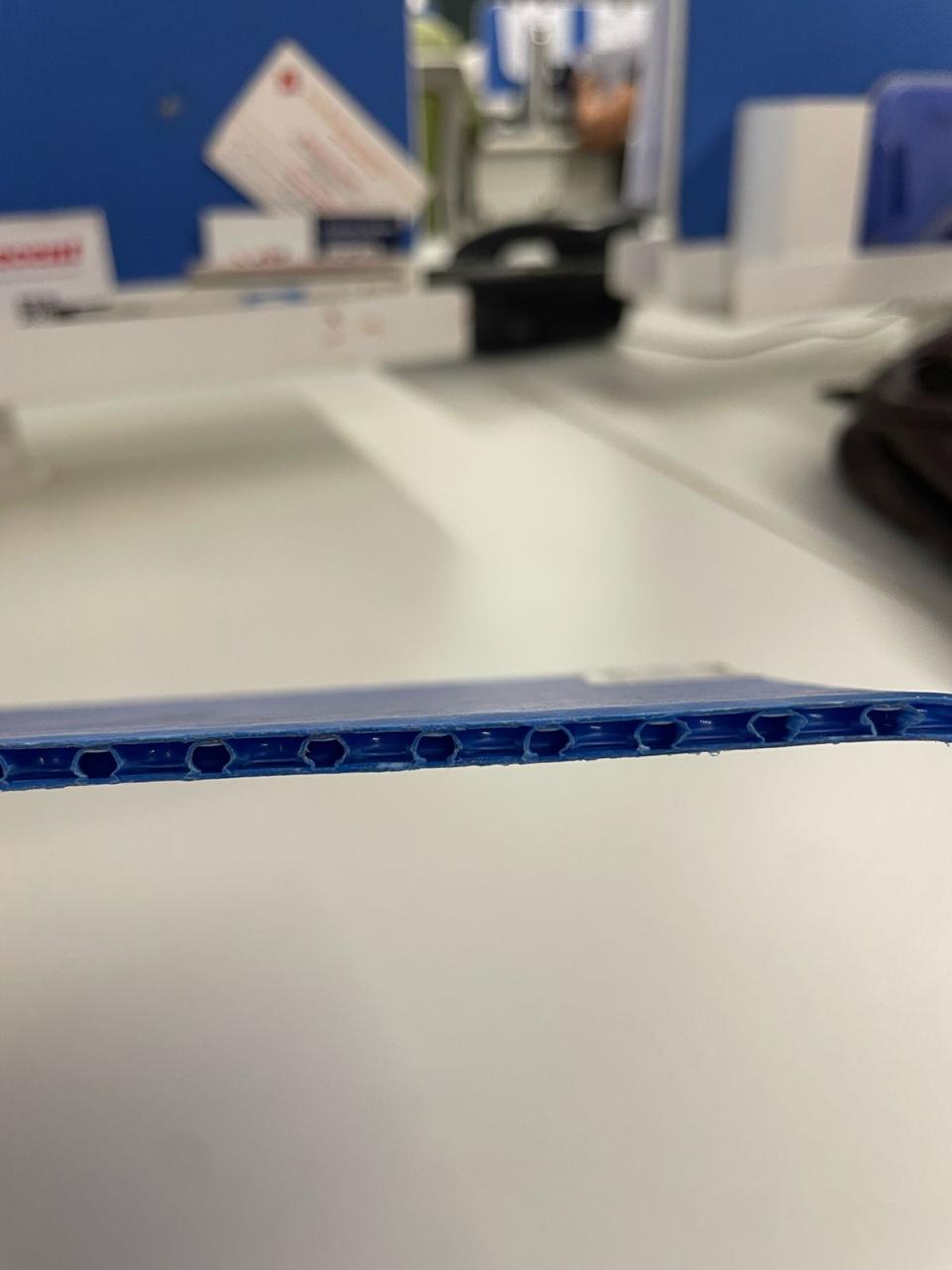

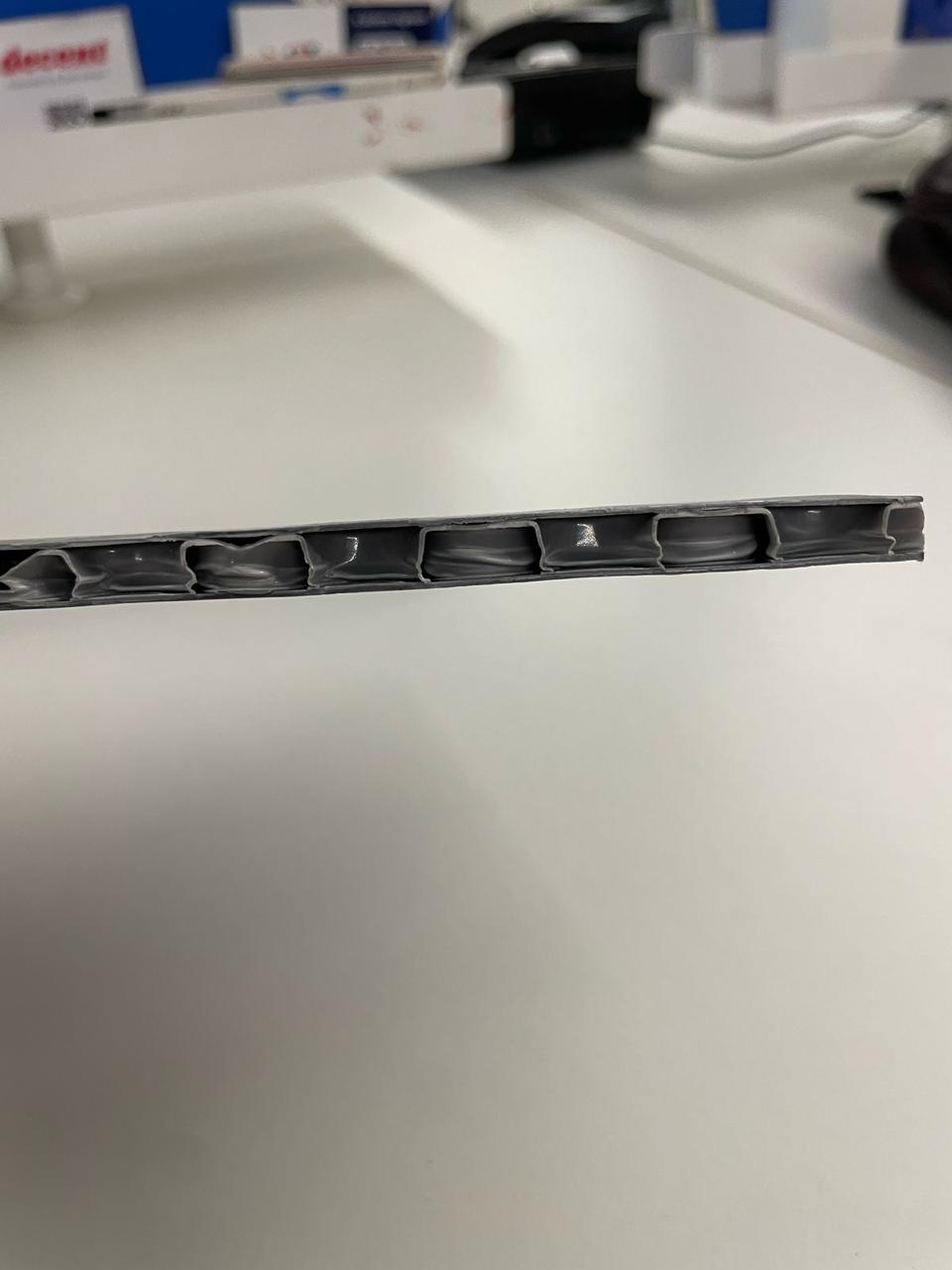

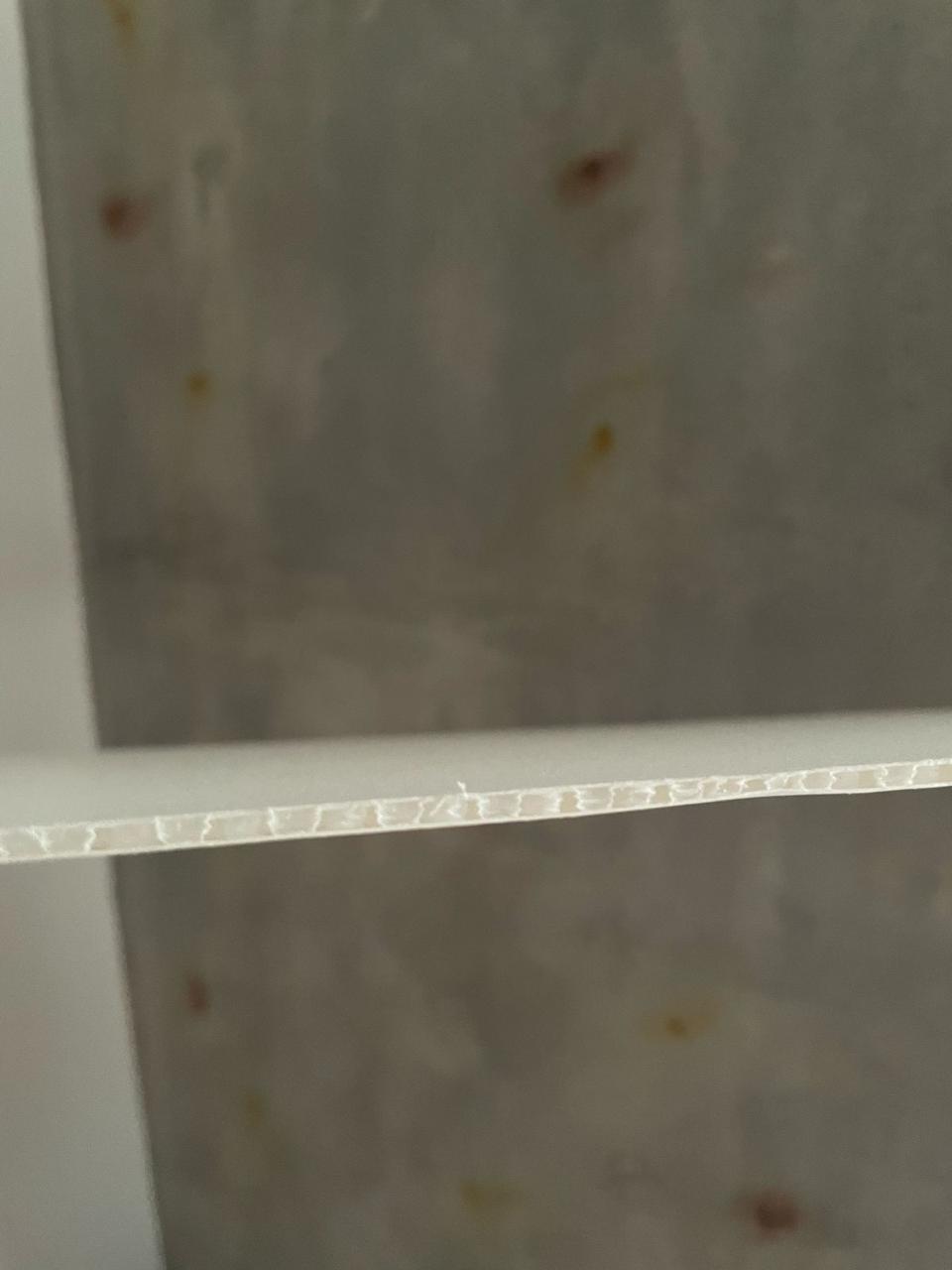

Echo Simplex Boards are 3-layer PP Honeycomb extruded sheets manufactured using polypropylene in homo polymer, co polymer, and ter polymer formulations. Unlike single-layer PP flute sheets, the unique three-layer honeycomb core structure delivers significantly superior strength, rigidity, and reusable life across industrial applications.
The circular honeycomb core provides equal strength in both machine and transverse directions — making Echo Simplex Boards the ideal replacement for PP corrugated sheets, cardboard, and plywood in packaging, protection, and industrial applications. Available in a wide GSM range from 200 to 3500 GSM, Echo Simplex Boards can be customized for virtually any industrial requirement.
Edge sealing, corner rounding, screen printing, and custom colour options are all available — enabling complete customization for branded and functional applications across industries.
| Material | Polypropylene (Homo / Co / Ter Polymer) |
| Structure | 3-Layer PP Honeycomb Extruded Sheet |
| GSM Range | 200 – 3500 GSM |
| Diameter | D4, D8, D12 |
| Thickness | 1.8 – 9.3 mm |
| Colour | Customized |
| Edge Sealing | Available |
| Corner Rounding | Available |
| Screen Printing | Available |

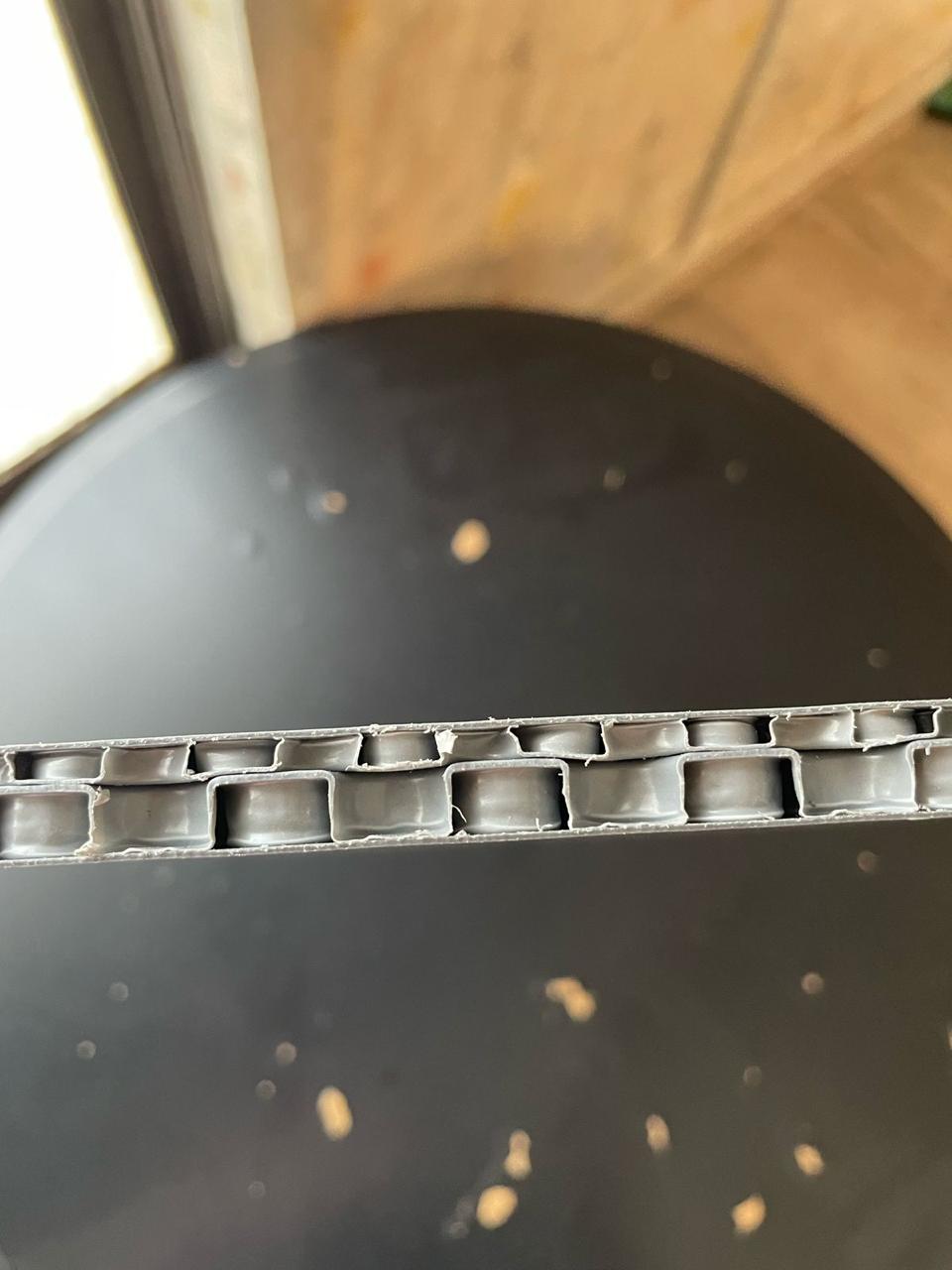

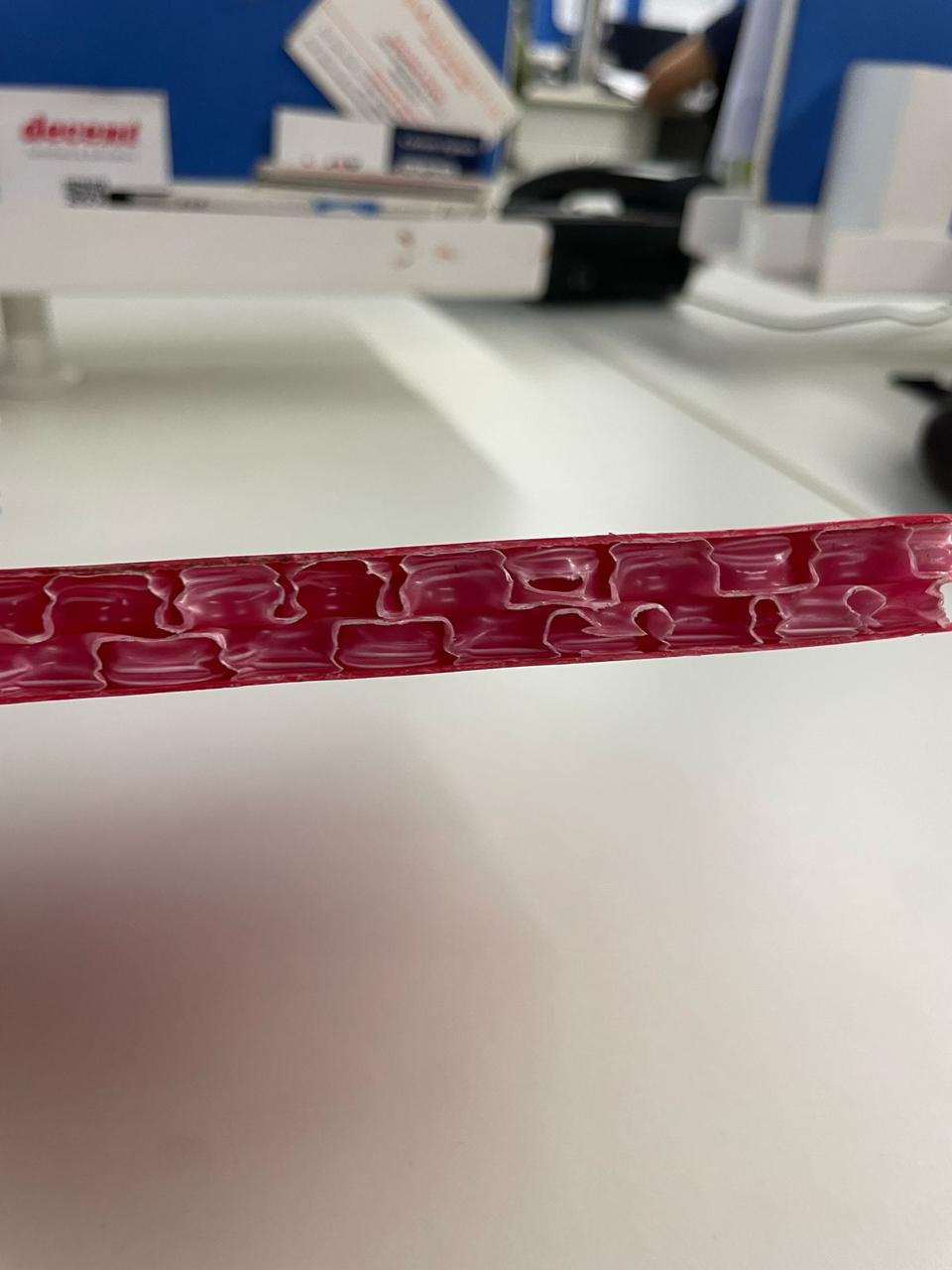

Echo Duplex Boards are advanced 4-layer PP Honeycomb extruded sheets designed for heavy-duty industrial applications, insulation requirements, and weight-reduction solutions. The four-layer construction delivers significantly higher load-bearing strength and rigidity compared to standard 3-layer simplex boards.
With a GSM range of 2000 to 7000 GSM and thickness options from 8mm to 18mm, Echo Duplex Boards are engineered for demanding structural, protective, and insulating applications where standard sheets are insufficient. The double-layer honeycomb core provides enhanced impact resistance, improved thermal insulation properties, and superior dimensional stability.
| Material | Polypropylene (Homo / Co / Ter Polymer) |
| Structure | 4-Layer PP Honeycomb Extruded Sheet |
| GSM Range | 2000 – 7000 GSM |
| Diameter | D4D8, D8D12, D12D12 |
| Thickness | 8 – 18 mm |
| Colour | Customized |

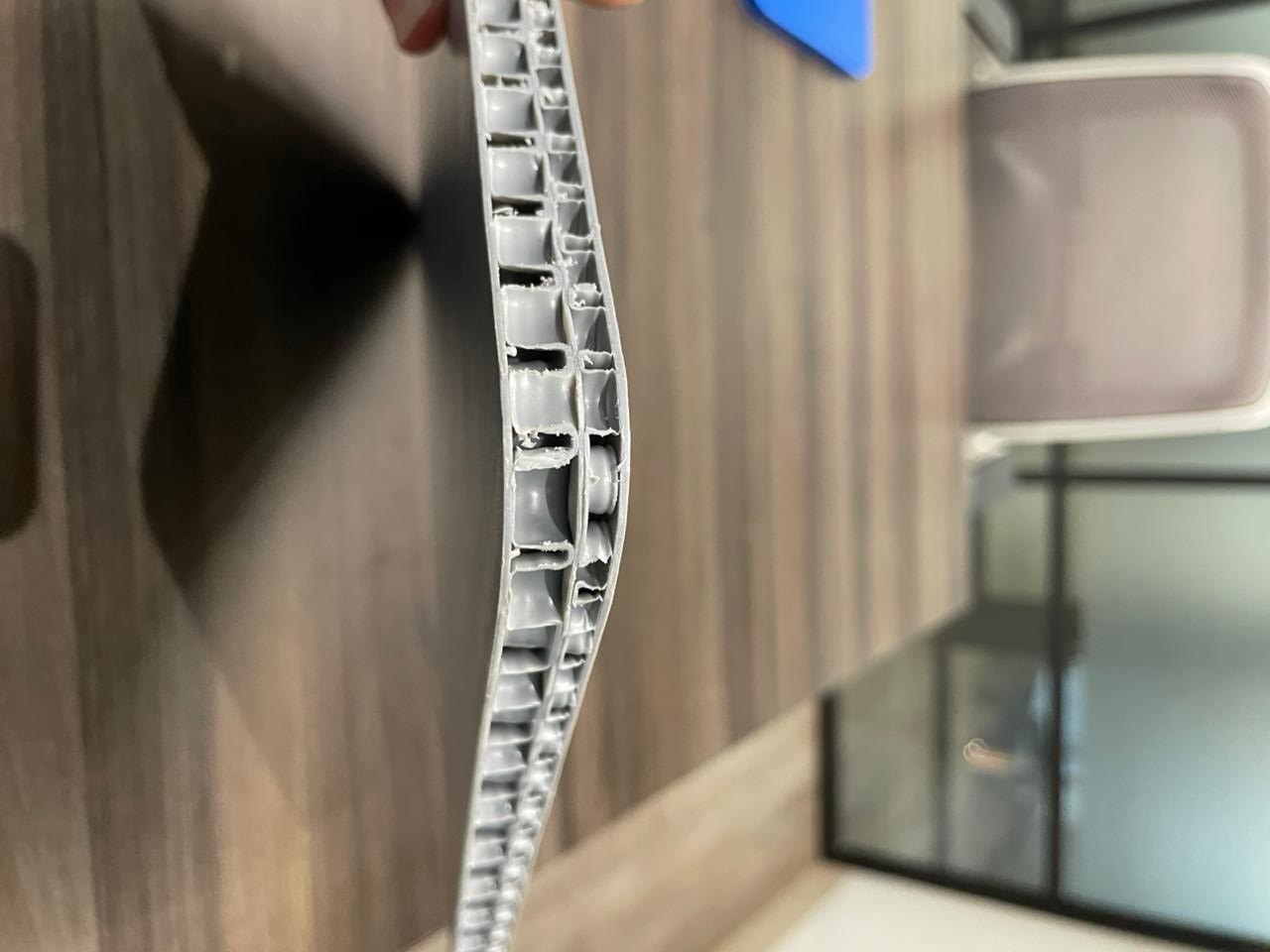

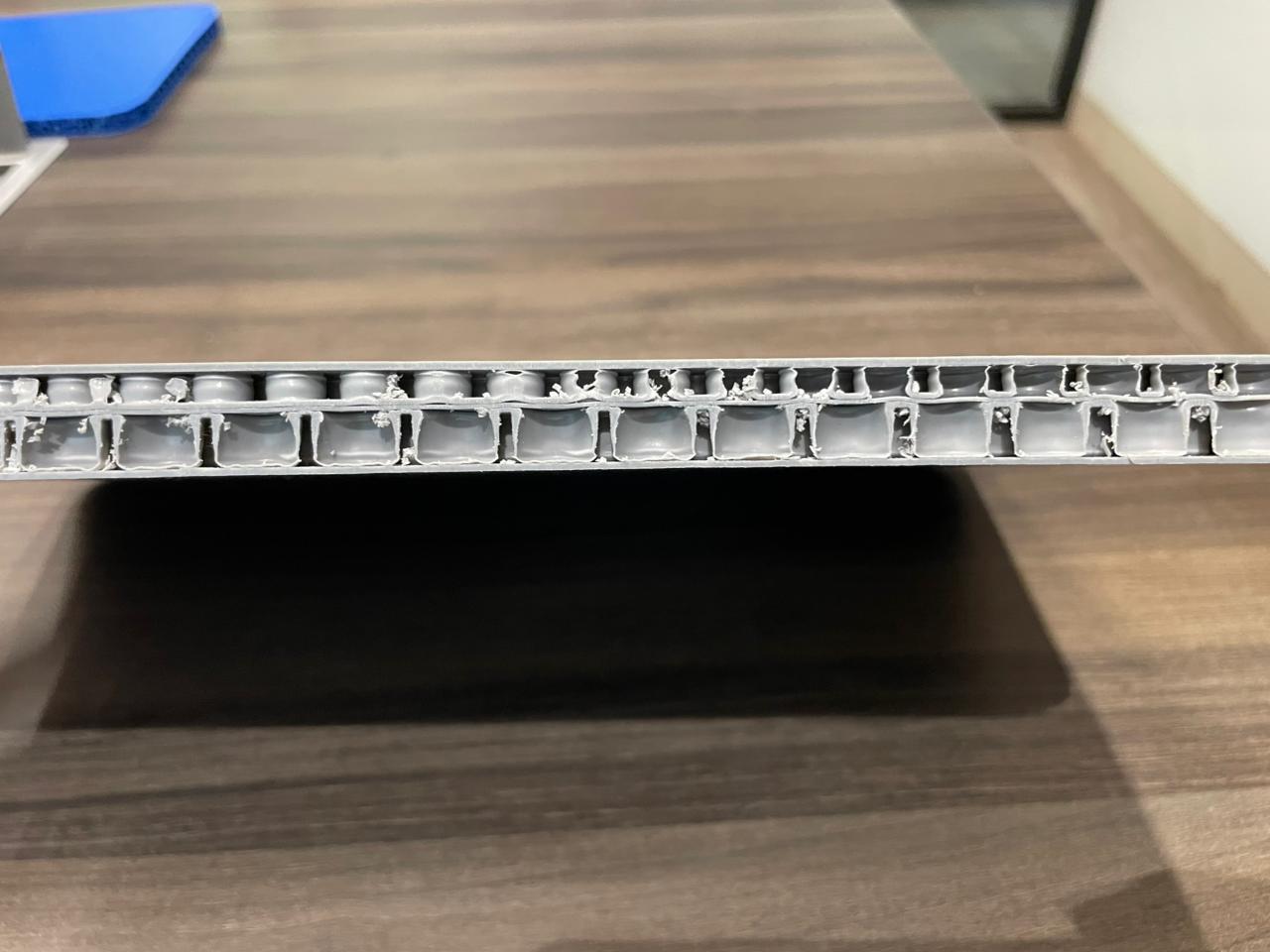

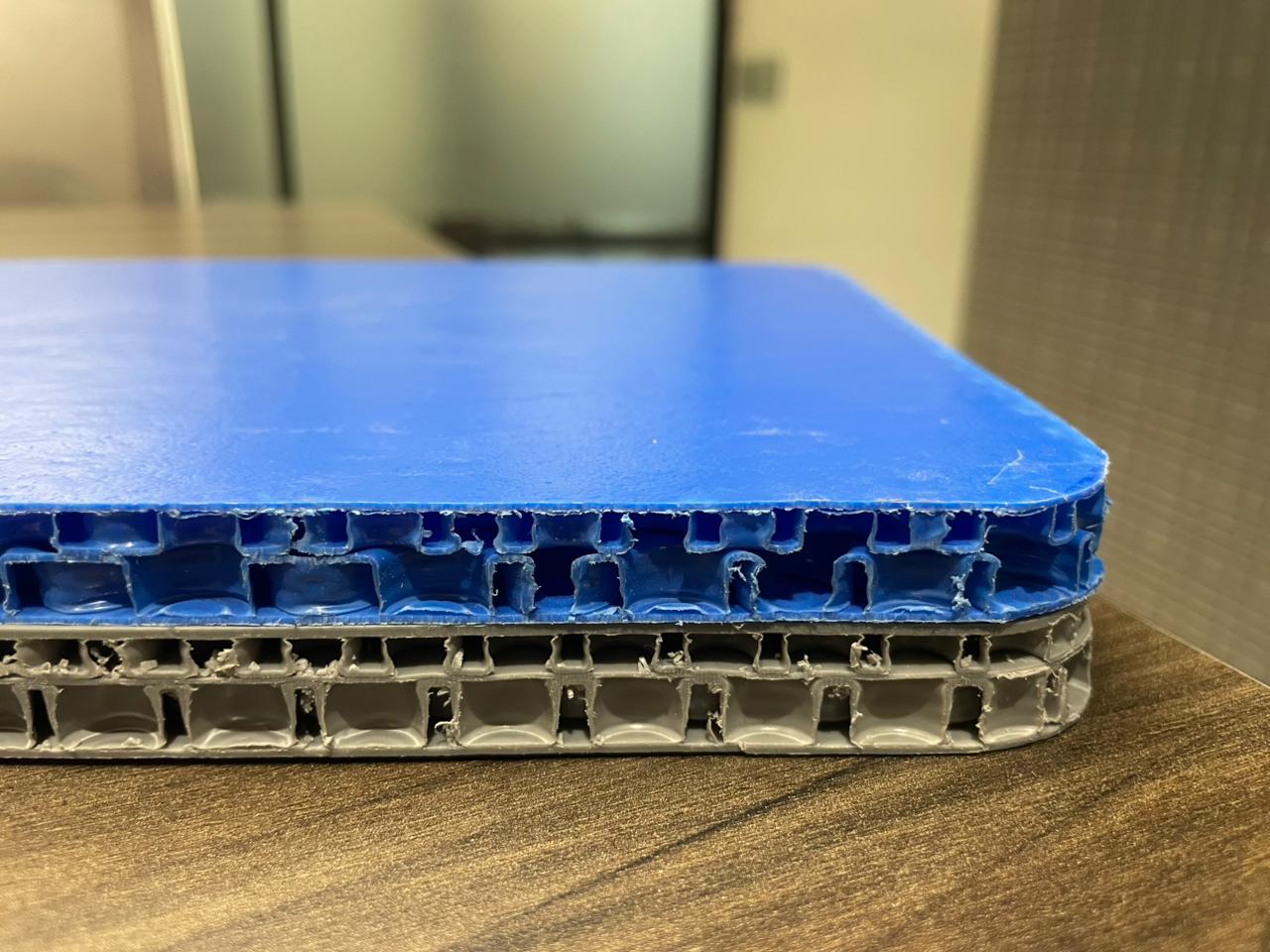

Echo 5X Boards represent the pinnacle of PP Honeycomb sheet engineering. Mutual Industries Limited is the only Bubble Guard manufacturer in India to produce 5-layer PP Honeycomb sheets — delivering unmatched structural performance for the most demanding industrial applications.
The 5-layer construction creates an extraordinarily rigid, strong, and durable board that is still significantly lighter than wood, MDF, or metal alternatives. This unique combination of high strength and low weight makes Echo 5X Boards the ideal choice for heavy-duty packaging, furniture substrates, automotive applications, and industrial weight-reduction programmes.
With a GSM range of 2000 to 7000 GSM and thickness from 8mm to 18mm, Echo 5X Boards deliver performance that no other Bubble Guard manufacturer in India can match.
| Material | Polypropylene (Homo / Co / Ter Polymer) |
| Structure | 5-Layer PP Honeycomb Extruded Sheet |
| Availability | Exclusive — Only manufacturer in India |
| GSM Range | 2000 – 7000 GSM |
| Diameter | D4D8, D8D12, D12D12 |
| Thickness | 8 – 18 mm |
| Colour | Customized |
Echo ESD Boards are specially engineered PP Honeycomb sheets designed for anti-static and electrostatic discharge (ESD) sensitive applications. Developed to protect electronic components from static damage during packaging, storage, and transit, Echo ESD Boards are available in three variants — Anti-static, Dissipative, and Conductive — covering the full spectrum of ESD protection requirements.
Unlike conventional packaging materials that can generate and accumulate static charge, Echo ESD Boards actively control electrostatic discharge — providing reliable, consistent protection for PCBs, semiconductors, electronic assemblies, and sensitive components.
All three variants are available across the full GSM range and diameter options — enabling complete customization for specific electronic packaging and handling requirements.
| Material | ESD-grade Polypropylene Honeycomb |
| GSM Range | 200 – 3500 GSM |
| Diameter | D4, D8, D12 |
| Anti-static Variant | 10¹⁰ Ohms |
| Dissipative Variant | 10⁶ – 10⁹ Ohms |
| Conductive Variant | 10³ – 10⁵ Ohms |
| Colour | Customized |
Our team will get back to you within 24 hours with specifications, samples, and pricing.
